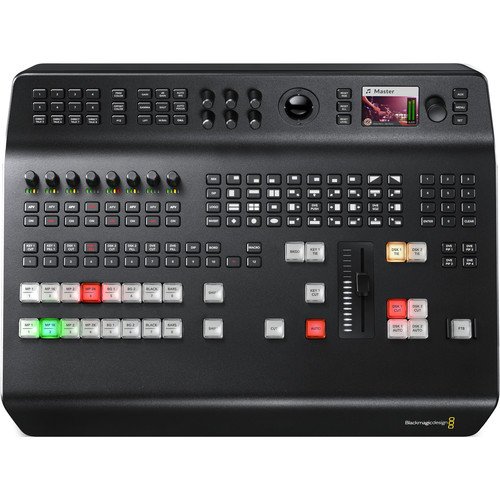

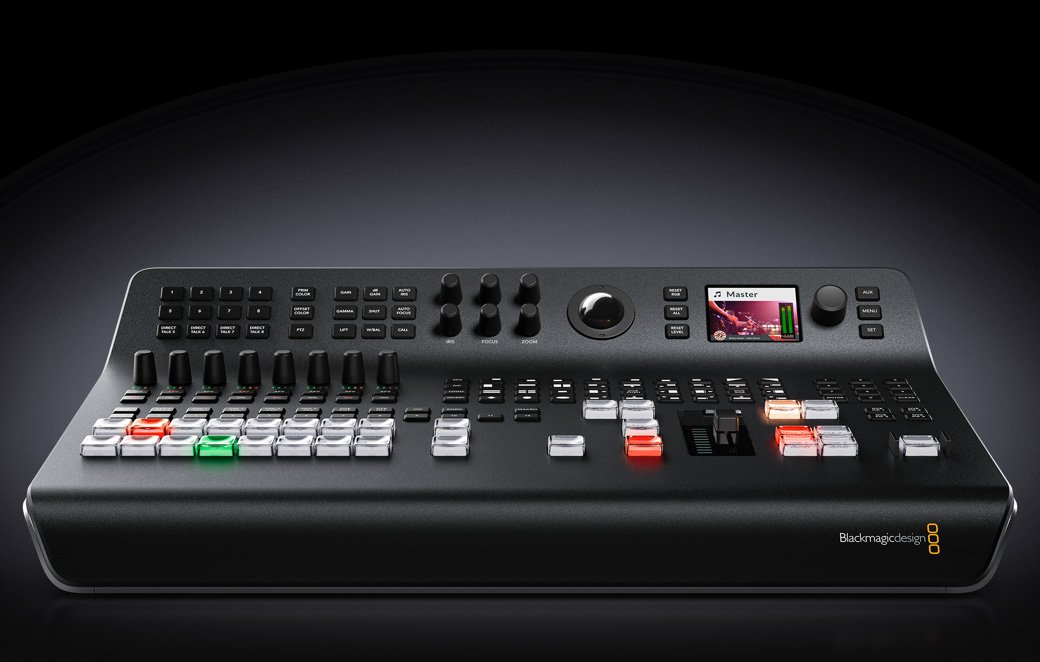

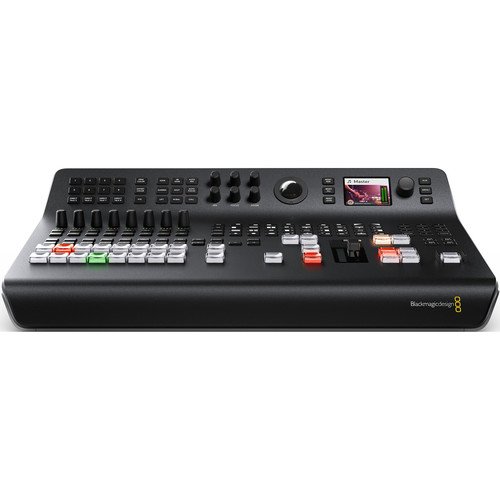

Blackmagic ATEM Television Studio Pro HD

Le premier mélangeur de production en direct au monde spécialement conçu pour les diffuseurs et les professionnels de l’audiovisuel qui intègre quatre entrées SDI et quatre entrées HDMI, un panneau de contrôle, un DVE, des incrustateurs, le réseau d’ordres, une sortie multi view et autres.

Principales caractéristiques :

Commutateur SDI / HDMI 8 canaux
Compatible NTSC / PAL, HD, signal d’ordinateur
Mélangeur audio numérique 10 canaux
Commandes du panneau avant intégrées
Sortie multivue via HDMI et SDI
Keyers en amont et en aval
DVE pour les transitions et les incrustations
L

Blackmagic Design ATEM Specs

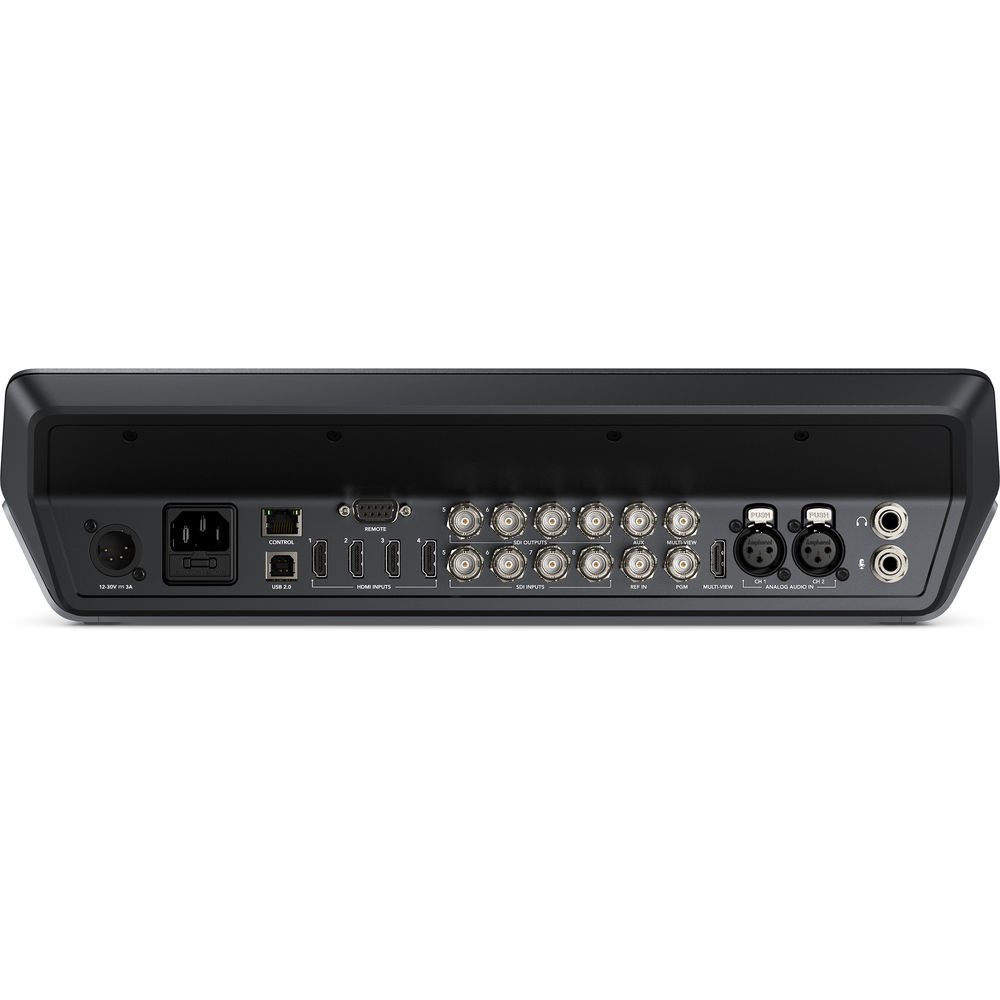

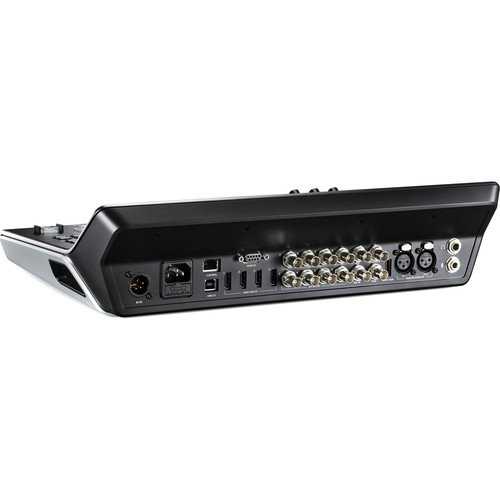

I/O
Inputs 4 x 3G/HD/SD-SDI, BNC
4 x HDMI Type A
2 x 3-pin XLR, analog audio
1 x BNC, reference
1 x 1/4″ (front panel), microphone
Outputs 4 x SDI BNC, talkback PGM
1 x BNC, program out
1 x BNC, AUX
1 x HDMI Type A, multiview
Other 1 x D-Sub 9, RS-422
1 x RJ45, Ethernet
1 x USB 2.0 Type-B
1 X IEC C13, power
1 X 4-pin XLR, power
Standards
Format Support 1080p: 59.94/50/29.97/25/24/23.98
1080i: 59.94/50
720p: 59.94/50
NTSC/525i: 4:3/16:9
PAL/625i: 4:3/16:9

HDMI Resolutions for Computers
1080p: 59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 59.94/50
720 x 480i: 59.94 Hz
720 x 576: 50 Hz
SDI Compliance SMPTE 259M, 292M, 424M
Video Sampling 4:2:2, 10-bit
Color Precision 4:2:2, 10-bit
Color Space 4:2:2 YUV
Color Space Conversion Hardware-based real time
Processing Delay 6 lines
General
Audio Mixer 10-input x 2-channel mixer
Keyers Upstream: 1
Downstream: 2
Chroma: 1
Linear/Luma: 3
Transition (Stinger/DVE): 1
Layers Up to 5
Generators Pattern: 2
Color: 2
DVE Border and Drop Shadow: 1
Interface Requires monitor resolution of 1366 x 768 or greater
Number of Windows 10
Routable Windows 8 x Routable
2 x Fixed, for program and preview
Tally Red for program, green for preview
Tally output supported via Ethernet connection to separately available GPI and Tally Interface products
Operating System Support Apple macOS 10.10, 10.11, or newer
Windows 8.1 or 10
Power Supply 110-240 VAC (internal)
Power Draw 40 W
Environmental Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 0 to 90% non-condensing
Dimensions 16.65 x 11.89″ / 42.29 x 30.20 cm
Weight 9.3 lb / 4.2 kg
